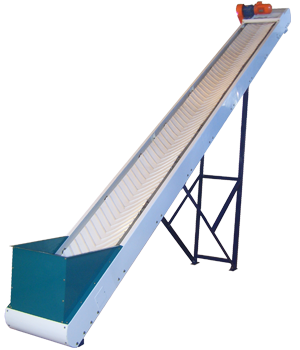

Trough Belt Conveyor

Application

  1. To move grains, granules, seeds, powder and lumpy material from one point to another horizontally or inclined direction.
  2. Used in food processing industry,Grain processing industry , Coconut processing industry, Cashewnut processing industry, Seeds processing industry, coffee processing, groundnut processing, etc.

Models & capacity

  1. 1 ton to 10 tons per hours.
  2. Higher capacity available on request.
Model No Belt Width Capacity Power
TC-30 300 mm 1 to 3 tons 1 to 3 HP
TC-50 500mm 5 to 8 tons 1.5 to 5 HP
TC-60 600mm 10 to 20 tons 2 to 7.5 HP
TC-80 800mm 15 to 30 tons 3 to 7.5 HP

Specifications

  1. No spillage of products.
  2. Outlet available with 45° as standard available.
  3. Front and back section, factory assembled.
  4. Belt as per product specification.
  5. Noise less rollers and idlers.
  6. Crowded rollers for easy self alignment.
  7. Drive system geared motor with chain and sprockets.
  8. Easy tensioning of belt.
  9. Self lubricating universal bearing.
  10. In feed hopper available if required.
  11. Belt cleaning scraper available if required.
  12. Available as horizontal or inclined type.
