Hulling & Polishing

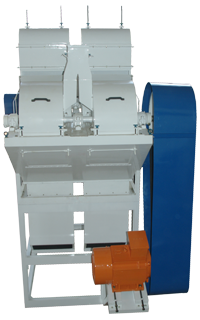

Cross Beat Huller

Application

ENROOT make CROSS BEATER HULLER are used in hulling of both parchement and dry cherry coffee. It includes a aspirating system for removal of husk and a Oscillating screen machine for separating of unpeeled coffee beans.

Specifications

  1. High efficiency.
  2. Less breakage of coffee beans, less wastage.
  3. High resistance hulling blade.
  4. Easy replacement of screen and blade.

Models

Model No Capacity Huller Power In HP Blower Power in HP Oscilating Screen Power in HP
CBH 16 0.5 ton per hour 10 HP 3 HP 0.75 HP
CBH 20 1 Ton per hour 25 HP 5 HP 1 HP
CBH 30 2 tons per hour 40 HP 5 HP 1 HP
CBH 30D 4 tons per hour 75 HP 7.5 HP 1.5 HP

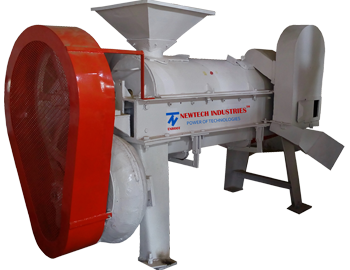

African Type Huller

<

ENROOT make COFFEE Engleberg HULLER also known as African type huller are used in hulling of both parchment and dry cherry coffee. It includes an aspirating system for removal of husk. When the coffee is forced between the drum and screen hulling is occurred.

Features

  1. Easy removal of bottom screen.
  2. Included by aspirating system and blower.
  3. Easy belt tensioning.
  4. Easy adjustment of cutting blade.
  5. Less breakage

Models

Model No Capacity Huller Power In HP
EBH 50 0.4 to 0.5 ton per hour 25 HP

Peeler Polisher

Peeler polisher is used in peeling and polishing of parchment coffee beans.


The machine is included with aspirating system.

Features

  1. Uniform polishing of all coffee beans
  2. Easy bottom door removal.
  3. Fewer blockages.
  4. Less breakage
  5. High efficiency blower

Models

Model No Capacity Huller Power In HP Blower Power In HP
PP50 0.4 to 0.5 ton per hour 15 HP 3 HP
PP100 0.9 to 1 to per hour 25 HP 5 HP
PP200 1.8 to 2 tons per hour 50 HP 5 HP

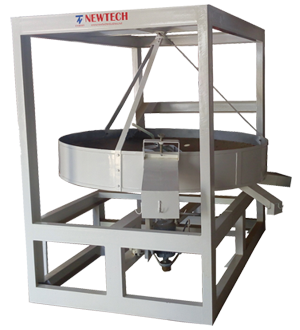

Oscillator Seperator


Application

Oscillating seperator is used to seperation of unhulled coffee after hulling process. It consists circular drum hanged with a universal joint and eccentrically drive system vibrates the drum. Due to its oscillation the good hulled coffee and unhulled coffee are seperated and discharged through the outlet spout.

Specifications

  1. High efficiency.
  2. Easy adjustment of Oscillating speed.
  3. Low power consumption.
  4. Easy control of outlet discharge gates.
  5. Long life ,Easy maintenance.

Models

Model No Capacity Power In HP Working Area in Square Feet
0S-50 0.5 TON 0.75 HP 12 SQ FEET
0S-60 1 TON 1 HP 18 SQ FEET
0S-72 2 TON 1 HP 27 SQ FEET
0S-90 4 TON 1.5 HP 44 SQ FEET
>
