Grader

Application

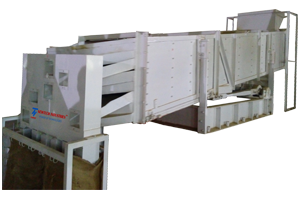

ENROOT make GRADER is a vibrating deck with sleeves used for grading of products like grains, seeds, cashew nuts, pulses, coffee, groundnut, spices etc according to their size and shape.

Specifications

  1. Quick & easy adjustment of deck inclination.
  2. Fine adjustment of feed control.
  3. Free moving of products.
  4. Available with vibro motor or eccentric drive.
  5. Quick and easy remove and replacement of screen.
  6. Automatic cleaning of screen with rubber balls.
  7. Reduced or very less frame vibration.
  8. Available from 1 to 8 screens.
  9. Wide range of round and slotted screen to suit all type of products.
  10. Provision for air duct line in feed hopper.
  11. Low maintenance, long life

Models

MODEL NUMBER POWER IN HP CAPACITY
GV 4 1 hp 0.2 to 0.25 ton
GV 8 1.5 hp 0.3 to 0.5 tons
GV 12 1.5 hp 0.75 to 1 TONS
GV 20 2 hp 1.1 to 1.25 TONS
GV 25 3 hp 1.5 to 1.75 TONS
GV 30 3 hp 1.8 to 2 TONS
GV 36 3 hp 2.25 to 2.5 TONS
