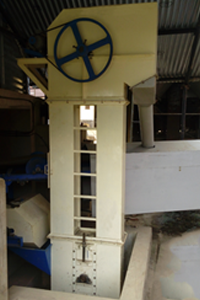

Bucket Elevator

Application

  1. To vertical lifting of grains granules, seeds, powder and lumpy material from bottom to required height.
  2. Used in grain processing industry, Coconut processing industry, Cashewnut processing industry, Seeds processing industry, coffee processing, groundnut processing, etc.

Models & capacity

  1. 1 ton to 10 tons per hours.
  2. Higher capacity available on request.
Model No Bucket Size Max Height Available Power
BF-10 3 inches 15 feet 0.75 HP
BF-15 3 inches 25 feet 1 HP
BF-20 5 inches 35 feet 1 HP
BF-25 6 inches 45 feet 1.5 HP
BF-30 8 inches 55 feet 1.5 HP
BF-35 8 inches 65 feet 2 HP
BF-40 12 inches 75 feet 3 HP

Specifications

  1. Heavy duty construction ensures long life.
  2. Inspection glass door.
  3. Easy & quick cleaning boot section.
  4. Head and boot section, factory assembled
  5. Both side in-feed provision
  6. Provide ladder with trunk section.
  7. On-site increase or decrease in height possible
  8. Outlet available with 45° as standard available.
  9. Self lubricating universal bearing
  10. Induction motor with v-belt drive as standard and geared drive available on request.
  11. Easy tensioning of drive and bucket belt.
  12. Crowded inner flat pulley as standard for self alignment and ribbed inner pulley available on request for soft products.
  13. Optimized bucket spacing with less material damage.
  14. Nylon buckets as standard and galvanized deep drawn ms bucket available on request.
  15. Cotton belt as standard and syntactic food grade belt as optional.
